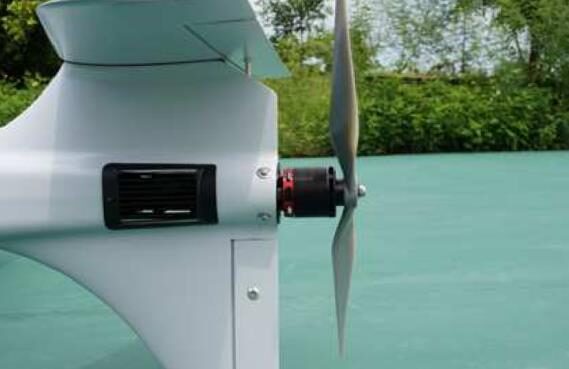

Pusher motor
The rear-mounted cruise motor is efficient and keeps the propeller out of the camera's view.

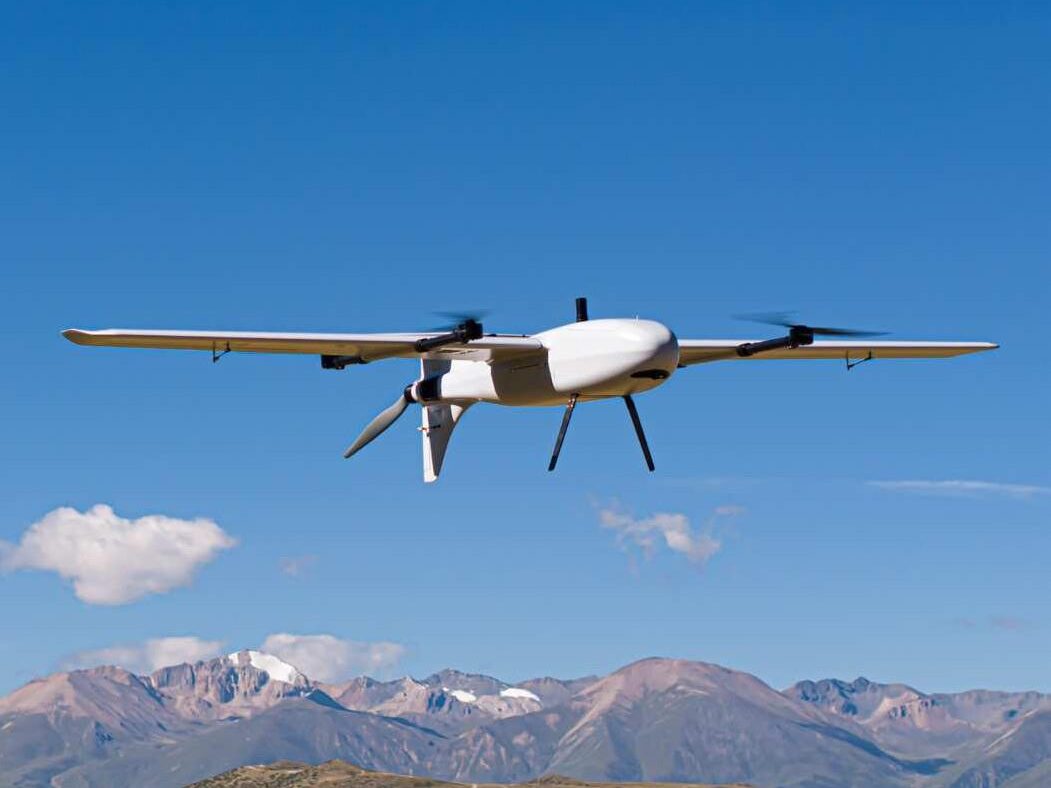

SA240 Pro electric VTOL UAV
Long-range capability. Runway-free operation.
The SA240 Pro takes off and lands vertically, then cruises efficiently on fixed wings. Its carbon fiber and Kevlar airframe and quick-disassembly design suit surveying, mapping, inspection, and monitoring work.
Configuration, payload, communications equipment, availability, and final specifications depend on the selected setup. Confirm details directly before ordering.
Built for missions beyond the runway
Hover to launch. Fly like a plane.

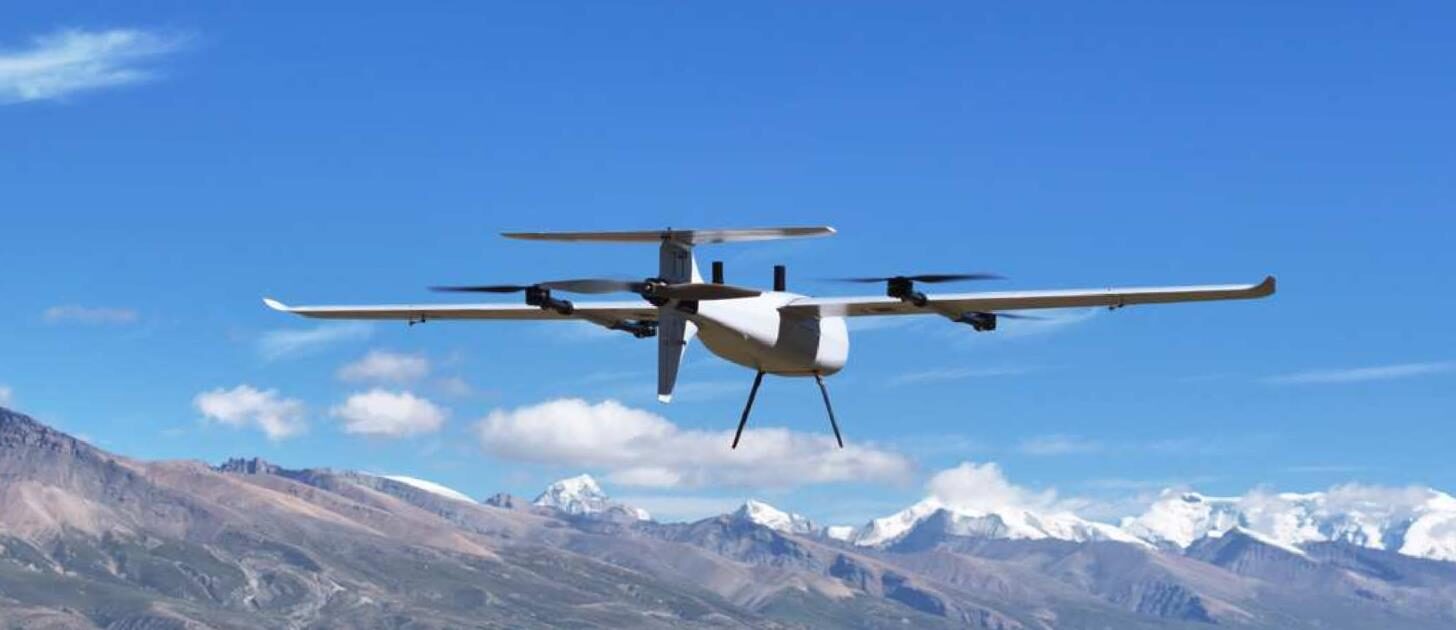

Four lift rotors handle vertical takeoff and landing, so a runway isn't needed. In forward flight, a rear pusher motor and long composite wings carry the aircraft much farther than a multirotor built mainly to hover.
The airframe comes apart for transport and folds into smaller cases. It runs the open-source ArduPilot system, so avionics, navigation, communications, and mission equipment can be configured to the job. Ask us which options are currently available and compatible with your use case.
Features
What the datasheet highlights.
Long endurance
Cruising range of up to 310 km, with 4–5 h of listed flight time.
Quick assembly

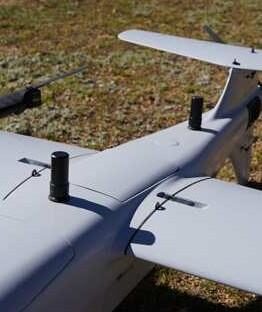

Quick-loading connections and a detachable airframe make it easier to set up and move.
Advanced flight modes
Supports remote and moving-platform takeoff and landing, terrain following, and formation flight.
Composite airframe
The carbon fiber composite fuselage is light and strong, built for a longer service life.
Payload capacity
Carries up to 2 kg of mission payload, with room for a range of sensors.
Specifications
SA240 Pro at a glance.
Figures come from the manufacturer's datasheet. Actual range, flight time, payload, positioning, and link distance depend on configuration, batteries, weather, and operating conditions.
| Body material | Carbon fiber + Kevlar composite |
|---|---|
| Size | 2,438 × 1,300 × 376 mmAbout 96 × 51 × 15 in. The datasheet diagram shows 2,438 mm across the wings. |
| Max flying speed | 30 m/sAbout 108 km/h or 67 mph. |
| Economical cruising speed | 18 m/sAbout 65 km/h or 40 mph. |
| Stall speed | 14.5 m/s at 13 kgQuoted at a 13 kg (about 28.7 lb) aircraft weight. |
| Endurance | 4–5 hThe datasheet lists 5 h in its specification table and up to 4 h of battery life in its overview. Confirm for your configuration. |
| Max cruising range | 310 kmAbout 193 miles. |
| Max payload | 2 kgAbout 4.4 lb. |
| Wind resistance | Level 5As listed by the manufacturer. Confirm operating wind limits for your mission. |
| Takeoff and landing | Vertical takeoff and landing |
| Power | Battery electric |
| Positioning accuracy | Single point: 1.5 m · RTK: 1 cm + 1 ppm |
| Flight controller | CUAV series flight controllerRuns the ArduPilot open-source system and supports secondary development. |
| Communication distance | Depends on the selected data link |
| Ground station | QGroundControl, Mission Planner, or LGC |
| Customized or optional | Flight controller, GNSS, remote controller, mission payload, body coating, waterproofing, Remote ID |
| Application scenarios | Mapping, inspection, logistics, monitoring, public security, delivery |
Specifications from the manufacturer's datasheet. They are not guaranteed for every mission. We'll confirm the figures that apply to your setup before you buy.
Potential applications
Made for covering ground.
Surveying and mapping
Collect aerial data for land, construction, and infrastructure projects, with an RTK option for tighter positioning.
Inspection
Fly routes along pipelines, power lines, rail, and other long assets.
Monitoring
Cover large areas again and again for environmental, agricultural, or site monitoring.
Public safety
Run mission-specific aerial observation, subject to the approvals and rules that apply.
Logistics and delivery
Carry light payloads within the aircraft's rated capacity where operations are authorized.
Configuration and options
Confirm the setup before you order.
The final system depends on the aircraft setup and the equipment you choose. Don't assume an accessory, sensor, or ground station is included unless it's listed in your written quote.
Flight and navigation
- Flight controller and autopilot setup
- GNSS and RTK equipment
- Ground station: QGroundControl, Mission Planner, or LGC
Mission equipment
- Payload or sensor type, weight, and integration
- Data link and expected operating range
- Remote controller, coating, and waterproofing
Order and support
- Batteries and included accessories
- Assembly, setup, and operator support
- Availability, delivery, and final quote
A Remote ID module is listed as an option. U.S. operations generally need FAA Remote ID compliance, and long-range or beyond-visual-line-of-sight flights need the right FAA authorization. Ask us how your planned configuration fits your operation.
Request current details
Tell us what you need the aircraft to do.
Share your application, payload, operating area, and any positioning or communications needs. We'll confirm the available configuration, included equipment, timing, and quote. If sending fails, your entries stay in place.
Common questions
SA240 Pro questions.
Can the SA240 Pro take off and land without a runway?
Yes. It's a VTOL aircraft, built to take off and land vertically. Whether a site is suitable, and what's needed to operate safely, depends on the configuration and conditions.
What payload can it carry?
The datasheet lists a maximum payload of 2 kg. Confirm the usable payload for your aircraft and mission configuration before you buy.
What is the aircraft's range and flight time?
The datasheet lists a maximum cruising range of 310 km and 4–5 h of endurance. Actual range depends on configuration, payload, batteries, weather, and operating conditions.
How accurate is its positioning?
The datasheet lists 1.5 m with single-point GNSS and 1 cm + 1 ppm with RTK. RTK needs compatible equipment and a correction source.
Does it include a camera, ground station, or RTK?
That depends on the package. Ask for a written configuration and a list of what's included. The aircraft works with QGroundControl, Mission Planner, and LGC ground-station software.
Can you help with setup?
Ask us to confirm the assembly, configuration, and setup support available for your order. Repair and diagnostic support is also available through our repair service.
Next step
Get the right configuration before you order.
Tell us about your mission and equipment needs. We'll help confirm current product details, options, and next steps.
