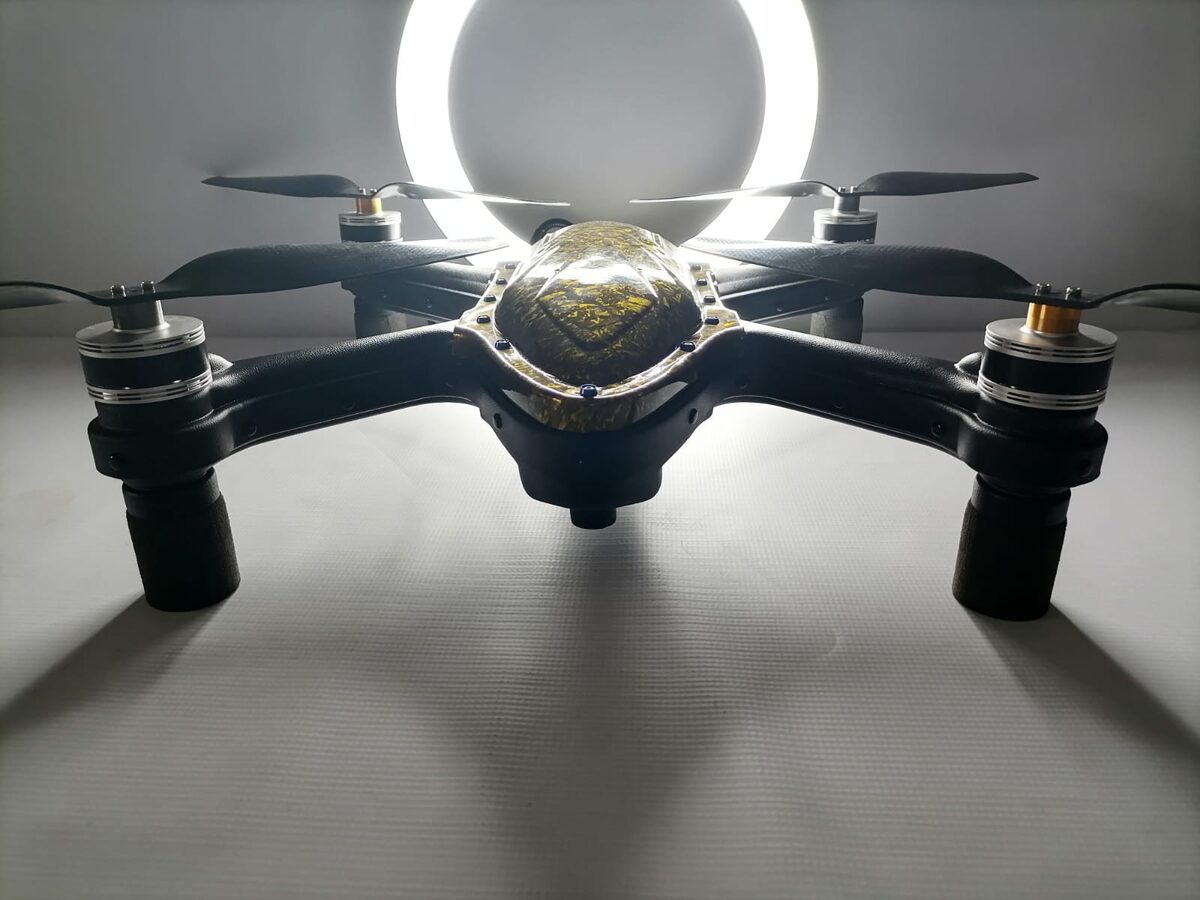

CUTA COPTER BOSS



The Cuta Copter TRIDENT BOSS  ‘Baits of Significant Size’ features an Industrial grade flight controller and compass. This monster is designed for Shark hunting when BIG lifts are needed and can safely lift 5.0kg! The All Cuta Copters are handmade in South Africa – the level of care is high and all drones are test flown.
The BOSS Fly More combo provides enough equipment to keep you drone fishing for longer. This BOSS Combo comes with an extra batteries (3 in total), extra pair of 15” propellers, a spare quick switch, 12V DC charging cable

Description

The Cuta Copter TRIDENT BOSS+ ‘Baits of Significant Size’ – This monster is designed for Shark hunting when BIG lifts are needed and can safely lift 4.0kg! All Cuta Copters are handmade – the level of care is high, and all drones are test flown. The BOSS Level combo provides enough equipment to keep you drone fishing for longer. This BOSS Combo comes with an extra battery (2 in total), extra pair of 15” propellers, a spare quick switch, Flight Lights, 12V DC charging cable and an OANNES 130cm Landing Pad. Cuta-Copter has been building the toughest and most reliable fishing drones on the Planet since 2014 – The BOSS+ features a high spec and performance flight controller utilising a 32-bit ARM® Cortex® H7, 480 MHz Processor with 2mb flash memory and a whopping 1MB of RAM. Breaking that down into layman’s terms – It Rocks.

The shear speed data is processed results in supreme flight stability, and this is especially noticeable when carrying baits in high winds. Triple and dual sensors are built in – Feel assured of ultra-reliability as redundancy is built in. Cuta is, and has been synonymous with safety and reliability, so it is only natural that we use a flight controller and GPS unit that will provide the best performance and asset safety for our customers. The latest M9N GPS enables simultaneous connection to all 4 GNSS satellite systems not just 3. In addition, the BOSS+ has a backup secondary compass! High quality assurance and pre-sale flight testing makes it the best fishing drone in the World period – Rest assured your Drone fishing has never been so safe, reliable, and fun.
NB: the higher the weight and wind level will reduce battery life and flight times.
The Trident BOSS+ is a one drop/one battery deal when lifting maximum loads.

Specification

TRIDENT BOSS+ Propulsion System

  • High capacity 6S LiPo Battery
  • 40A Electronic Speed Controllers ‘ESC’
  • High thrust waterproof motors
  • 15” High quality carbon fibre propellers

Advanced Flight Modes

  • ALT/Hold mode
  • POS/Hold mode (Anti Pendulum Mode)
  • Loiter Mode
  • Follow me mode
  • Return to Land mode
  • Come to me mode
  • GPS Waypoint mission planning
  • Click to Save – GPS position saved

Aircraft

  • Waterproof Level: Waterproof seal on main electronics chamber
  • Surface Buoyant: Level 2 Flotation
  • Drone Weight: 1780g (without battery)
  • Dimensions: 455mm x 455mm
  • Max Ascend Speed: 10m/s
  • Max Descend Speed: 3m/s
  • Max Flight Speed: 65kph (User Adjustable)
  • Max Flight Altitude: 40M – Set at factory
  • Wind Rating Typical Maximum: 40kph (21-22Knots)
  • Wind Rating Peak Gusts: 50kph(26-27 Knots)
  • Max Flight Time (per charge): 4 drops at 300M, 700gm bait, (Max load – 1 drop to 700 meters)
  • Max Flight Range: 3 km – (Geofence set to 700M)
  • Max Payload Capacity: 4.5KG (Recommended safe lifting weight 4.0KG)
  • ESC: 40A sealed in waterproof dielectric resin
  • Propellers: 15” carbon fibre propellers
  • Working Temperature: -10°C ~ 40°C
  • APP: SkyDroid GCS (Android Only)
  • Motor: Brushless/Waterproof

Remote Control

  • Weight: 660g
  • Frequency: 2.400-2.483GHz
  • Range: 3 km (unobstructed, free of interference) Set at factory to 700M
  • Modulation: New FHSS
  • Working Current: 100mAh
  • No. of Channels: 10
  • Battery: 2 X 18650 Lithium batteries (Provided)
  • Video Transmission
  • Range: 3 km Max (unobstructed, free of interference)
  • Working current: 180mA
  • Camera: 720P HD 1280×720

GPS

  • MAIN: CUAV Neo 3 -Ublox M9N satellite receiver. Enables simultaneous reception of 4 Global Navigation Satellite Systems ‘GNSS’ – GPS, Galileo, GLONASS and BeiDouh.
  • BACKUP: Industrial grade RM3100 compass!

Flight Controller

  • Type: NORA+ (PX4)
  • Microcontroller: STM32H7
  • Processor: 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM
  • Sensors: 3 x Accelerometers, 3 x Gyroscopes, Magnetometer, 2 x Barometers

Video Transmission

  • Range: 3 km Max (unobstructed, free of interference)
  • Working current: 180mA
  • Camera: 720P HD 1280×720 DIGITAL

Battery

  • Standard Battery (6S/5000MAH 22.2V 60C LiPo)
  • Battery Type: LiPo
  • Battery weight:743gms
  • Operating Temp: -10̊ to 50̊C
  • Charging Current: 5AMP
  • Voltage: 22.2V

Charger

  • Type: 100W Smart Balance Charger LiPo
  • Battery Charge Time: 60mins at 30% level
